Description
Your ultimate exterior cleaning solution!
💥High Pressure
💥Softwash
💥Pure Waterfed window/solar panel cleaning setup
💥Incorporated ladder + surface cleaner rack
💥Matching surface cleaner
💥Drum storage
💥Secure tool storage
💥Secure pole storage
💥100ah portable lithium battery & charger

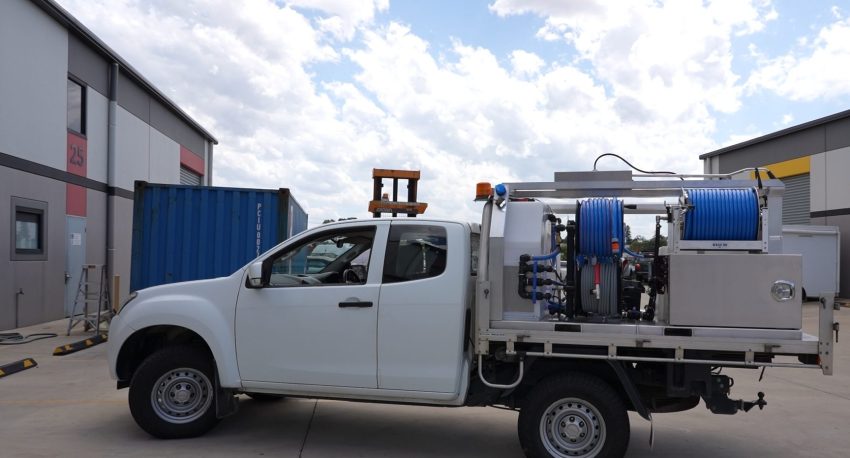

All neatly and intuitively set up on a skid that will fit most dual cabs, just 1700mm long and 1800mm wide. Free, fast installation onto a bare tray! Minimal downtime, drive in – drive out – go to work!
All packages come with ~50m Supply hose, 60m High pressure hose, our powerful 12v Softwash Skid Featuring 27lpm pump, 100ah removable lithium battery & ~80m of 5/8 NWC Softwash hose, custom fitted and plumbed into the system. 100m of 10mm waterfed tube, a 2 storey waterfed window cleaning pole + brush. 200L headboard buffer tank, 150L softwash batch tank. Surface cleaner matched to the pressure cleaner option selected and matching surface cleaner rack. Low water cut-off switch for the pressure cleaner. Quality quick connects and a ball valve.
Options and pricing:
Base model – featuring the ~20lpm belt drive from BAR Â – Genuine Honda GX390 powered, Comet italian pump, upgraded to K1 soft unloader. Standard gun and accessories supplied with a matching 16″ or 18″ Surface cleaner – $26,699
Stage 2 Package – Kohler 21lpm 3000psi Keystart. A true 14hp, Kohler USA motor with a very noticeable power increase from the GX390. Comet italian pump and our own premium belt drive system, key start, K1 soft unloader for operator comfort and safety as standard. Perfect for those that want an edge while still staying within the specs of a Class A machine. Supplied with our KW Deluxe gun & lance package  featuring built in swivel, LTF Soft pull gun, 3 lance sizes and a BAR SS Pro 21″ Surface Cleaner with KW fitting to quick swap between lance & surface cleaner with ease! $29,999
Stage 3 Package – BAR 30lpm GX690 Belt Drive Truckmount. Belt drive 30lpm/3500psi. Upgraded to K1 Soft unloader for operator comfort and safety. Custom ~35L Alloy fuel tank. Supplied with our KW Deluxe gun & lance package  featuring built in swivel, LTF Soft pull gun, 3 lance sizes and a BAR SS Pro 21″ Surface Cleaner with KW fitting to quick swap between lance & surface cleaner with ease! – $33,499
Stage 4 Package – Honda GX690 based Spitwater 30lpm. A Belt drive 30lpm/4000psi beast. Custom ~35L Alloy fuel tank. Upgraded to K1 Soft unloader for operator comfort and safety. Supplied with our KW Deluxe gun & lance package featuring built in swivel, LTF Soft pull gun, 3 lance sizes and a BAR SS Pro 21″ Surface Cleaner with KW fitting to quick swap between lance & surface cleaner with ease! – $35,999
Stage 5 Package – NWC Kohler Powered 27lpm 4000psi pressure washer (32lpm/3500psi available as an option +$250) Kohler Electronic Fuel injected (EFI) True 26.5hp beast, with our premium belt drive system. The larger EFI motor gives a longer expected life cycle along with fuel savings vs carburettor motors. K1 soft unloader for operator comfort and safety as standard, Supplied with our KW Deluxe gun & lance package  featuring built in swivel, LTF Soft pull gun, 3 lance sizes and a BAR SS Pro 21″ Surface Cleaner with KW fitting to quick swap between lance & surface cleaner with ease! – $36,999
12v WFP Upgrade –Fit a 12v pump + extra plumbing to the WFP system to use the system independent of mains water supply. Allowing the wfp to draw from the 200L buffer tank and clean windows/solar panels without being connected to a tap – +Â $999
RO/DI WFP Upgrade – Upgrade the pure water system to reverse osmosis for those areas with hard water out of the taps – + $1980 (includes 12v WFP pump)
Lighting kit –Â Low water warning light + work lights installed & wired into system – + $999
Upgrade to 400L Buffer tank – Larger skid, 2000Lx1800W suitable for space cab utes or 2200-2400×1800 suitable for single cab utes- +$840
Other options/versions – Upgrade to 240v Softwash, add/swap components for Hot Water/Graffiti removal spec, Truckwas/Fleetwash, Mine spec etc – Contact us for a quote
FAQ’s:
If I buy the base model can I upgrade pressure cleaners down the track?
YES! We’ve designed the skid so that all our machine options fit in the same convenient space. If you ever wanted to upgrade to a bigger machine in the future it’s just the cost of the new machine (and fuel tank if applicable) and labour to swap it out. You would even be able to sell the old machine on the second hand market.
Do you offer finance options?
YES! We’ve teamed up with a great brokerage firm to offer competitive rates and they can usually do a soft check to see if you’ll be approved, without affecting your credit score. Get in touch to find out more.
Can you do a space/extra cab model?
The dual cab skid will fit on most extra/space cab utes with approx 400mm to spare. We think it’s best to utilise the extra space for some spare storage, and it’s possible for us to upgrade the skid to a 400L headboard tank which would take up the extra room and allow for a bit more room between components
Can you do a single cab model?
We sure can! Get in touch with your dimensions for a quote. With the extra space available on a single cab a few other options open up like different softwash systems, larger toolboxes etc.
How much does it weigh?
A very good question, given that most dual cabs can only carry around 800-950 kgs. We’re proud to say our skids, complete with all equipment weigh in at only around 500 kg! Even lighter for the single 20/21 lpm models at around 450 kgs! Of course these are weights without fluids and it would be best practice to drive around with the buffer tank at least half drained and the softwash tank as low as practically possible.
What if I don’t want softwash and/or window cleaning options?
If you just want a slick drop in high pressure only rig, that’s fine. We can build a system without the extras. Get in touch for a quote as there’s a few options like extra storage we can offer with the free’d up space.
Why aren’t there any gearbox drive options?
In short, belt drive is hands down better all around. We could save a few bucks by offering gearbox, or direct drive. But remember, we’re all about building equipment we would want to buy ourselves – Built by washers, FOR washers. Both Nathan and his crews are still on the tools so we offer a range of quality belt drive options to suit a variety of budgets. Belt drive delivers more power with less wear and tear, less maintenance and a longer life cycle.
Can the skid fit on a trailer?
If the trailer has a flat space of 1700×1800 (or the larger options) YES!
